Some of GameChanger users use Open Broadcast Studio (OBS) to use other camera sources, such as video cameras or more advanced cameras, to stream to GameChanger.  This can also add additional visuals not currently available on GameChanger.

This option is not suggested for users who are just beginning with streaming or who have limited streaming experience with external cameras.

The steps below assume that you:

• Have successfully streamed a game on GameChanger via an external camera using RTMP(s) URLs and Stream Keys.
• Know how to use OBS to stream to a custom RTMP(s) destination.

Connecting OBS to GameChanger

1. Download OBS Studio to your computer.
2. You will be asked if you want to run the "Auto-Configuration Wizard." Please click "No" and then "OK."  We will set things up manually.
3. Inside OBS Studio, click the "Settings" button in the lower right-hand corner.

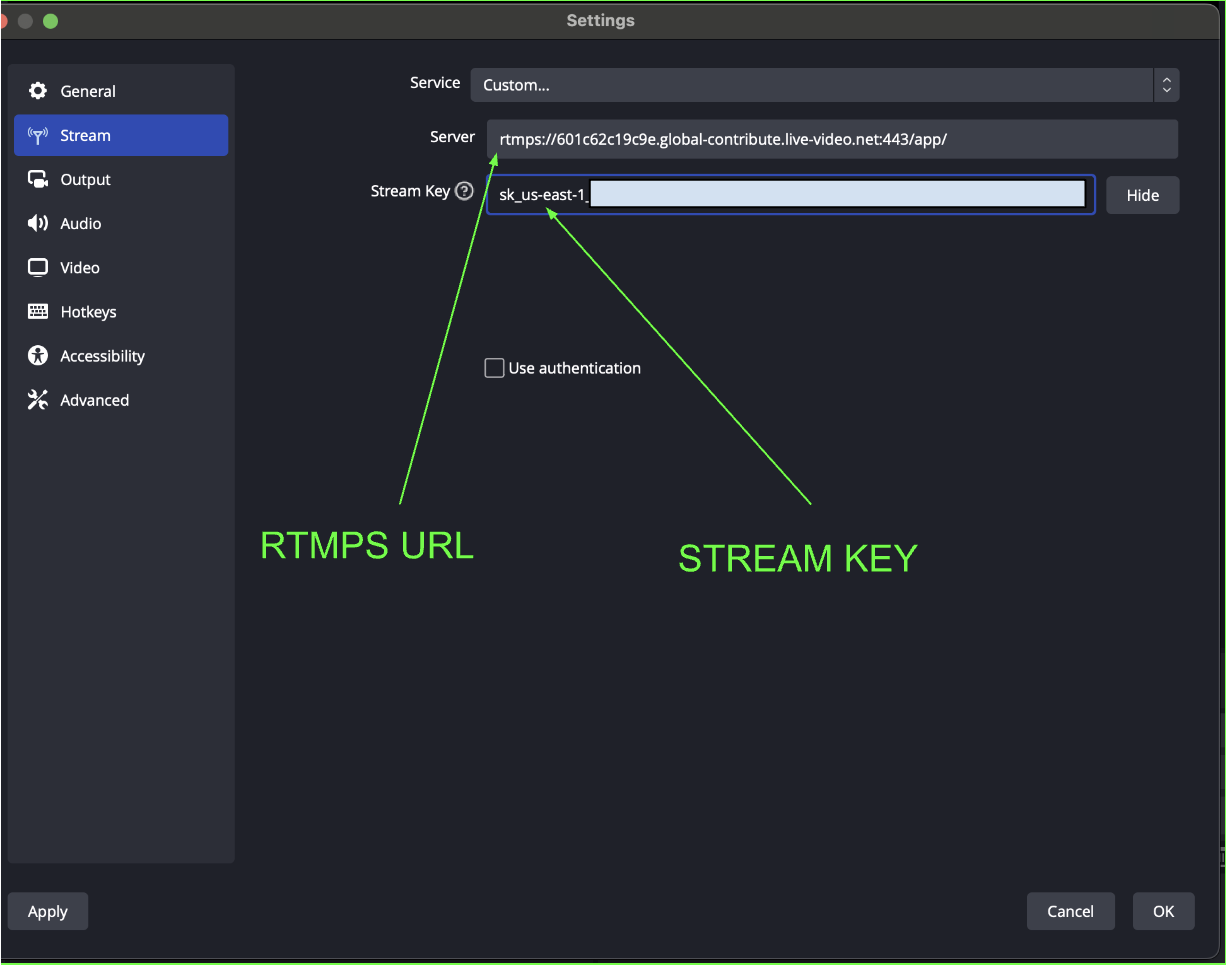

4. Choose "Stream" on the left sidebar. For the "Service" drop-down menu, select "Custom" and click the "Use Stream Key" button.


   Your RTMPS URL and Stream key can be found in your GameChanger app.

5. In GameChanger, navigate to the game on the schedule you wish to stream.
6. Click on Go Live
7. Click External Camera
8. Select your Video Audience and if you will share the stream with your opponent, and click Continue.

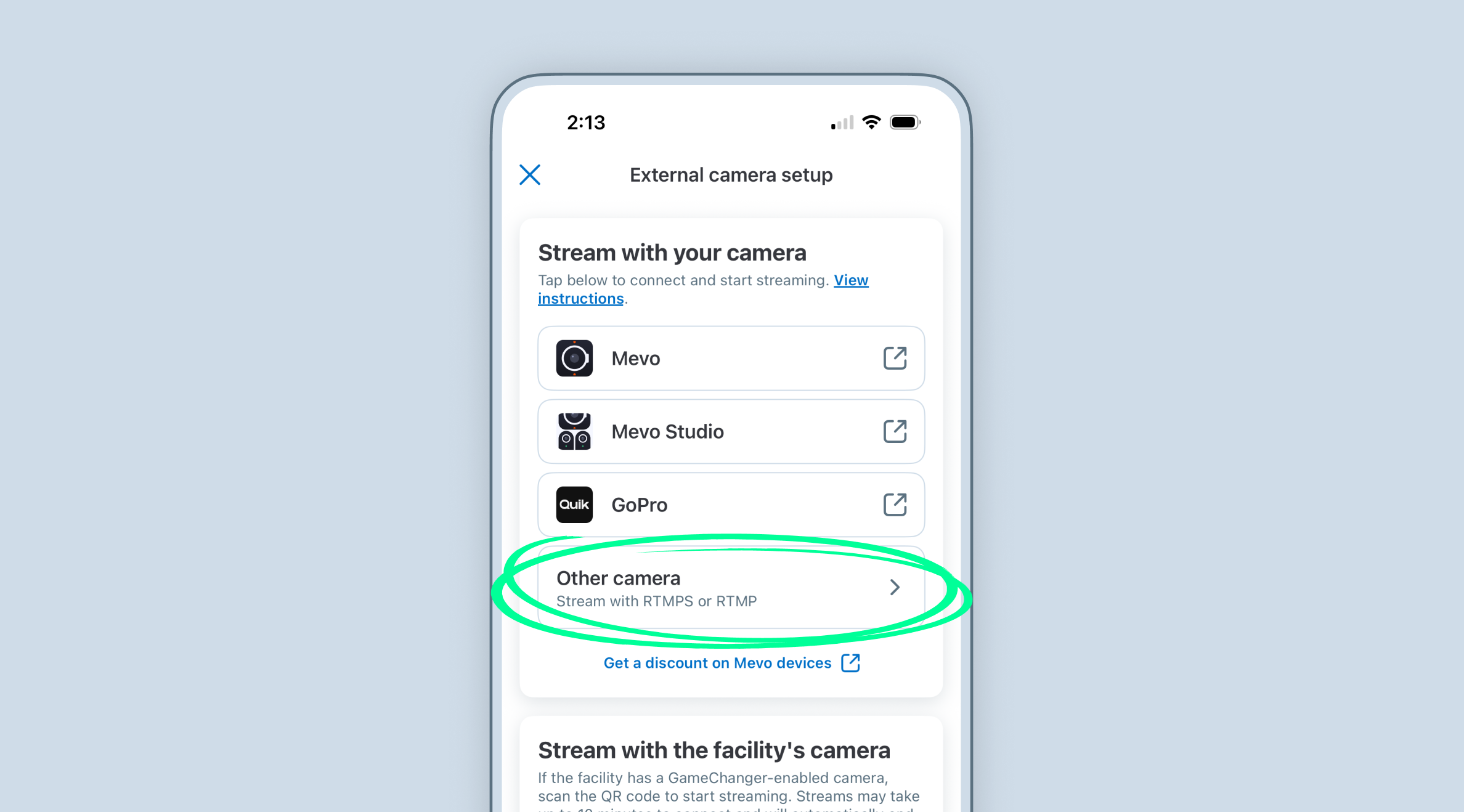

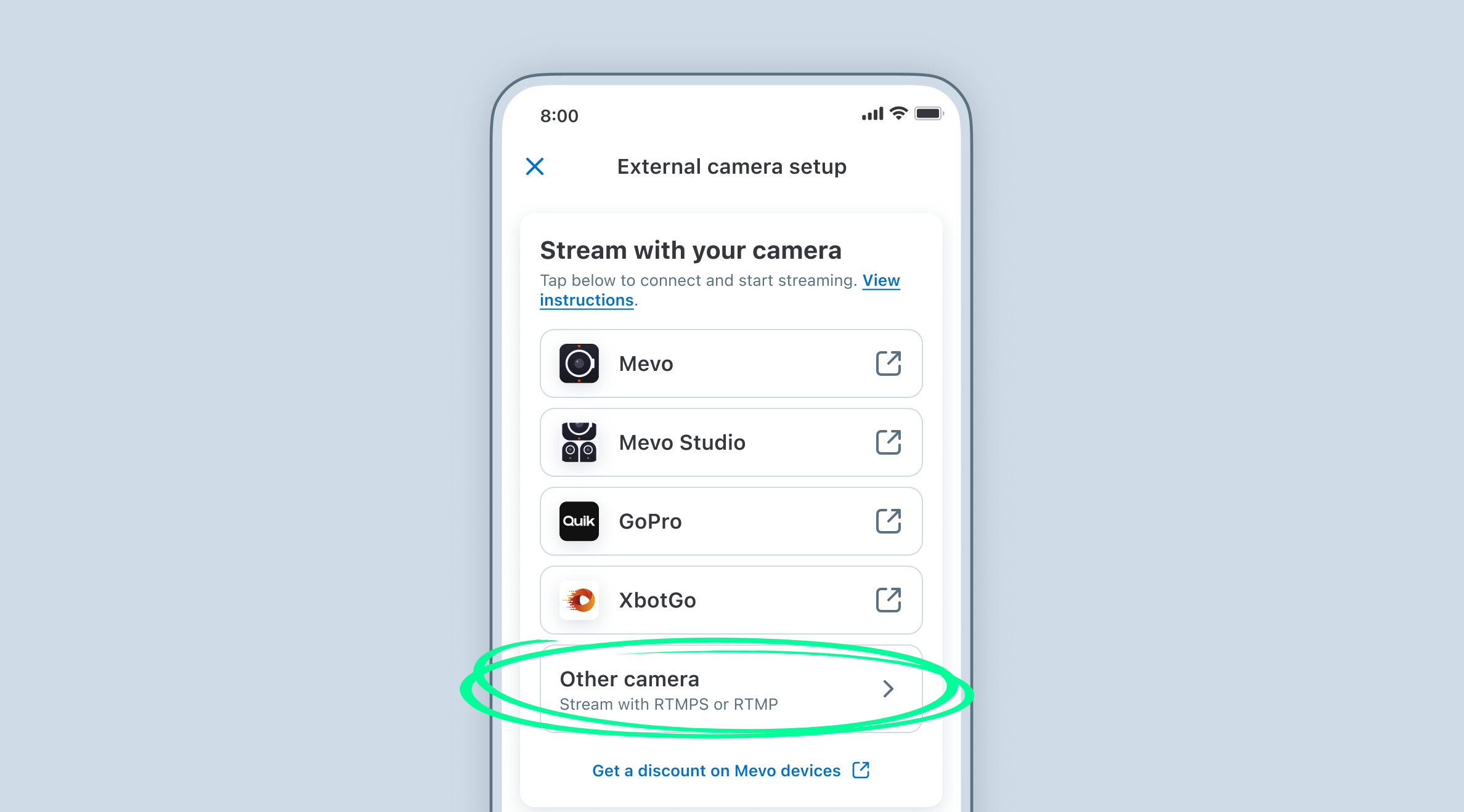

9. Select Other Camera



10. Click Copy next to the Stream URL (Mevo Multicam and Other Devices)
11. Paste this URL into a document or note on your device that can be accessed on your desktop or laptop computer.
12. In the GameChanger app, click Copy next to the Stream Key (Mevo Multicam and Other Devices)
13. Paste this Stream key into a document or note on your device that can be accessed on your desktop or laptop computer.
14. On your computer, locate the document, copy and paste the URL and Stream Key into their respective areas in OBS
15. OBS Settings
    • Leave Output Settings set to Simple
    • Resolution settings can be changed under Video.  Below are the recommended resolutions for use with GameChanger.
      1. 1920x1080
      2. 1280x720*
      3. 852x480
16. Click OK
17. Set up your video source through OBS.  Instructions can be found in the OBS Studio Help Guide PDF on the OBS Resources page

You can now start your stream to GameChanger.

*Suggested resolution for streaming to GameChanger.

Video switchers, bonding services, and mixing software all introduce timing delays (video buffering) in your video streams. These delays can affect the timing of the GameChanger scoreboard.

Monitoring Your Stream's Health

During a stream, you can monitor your stream's health using the OBS Log Analyzer.

1. In OBS, click Help
2. Select Log Files
3. Select Upload Current Log File
4. Select Analyze

• Dropped Frames
• CPU load
• Stream Indicator
